Industrial PLC-to-Cloud Gateway for SCADA Systems

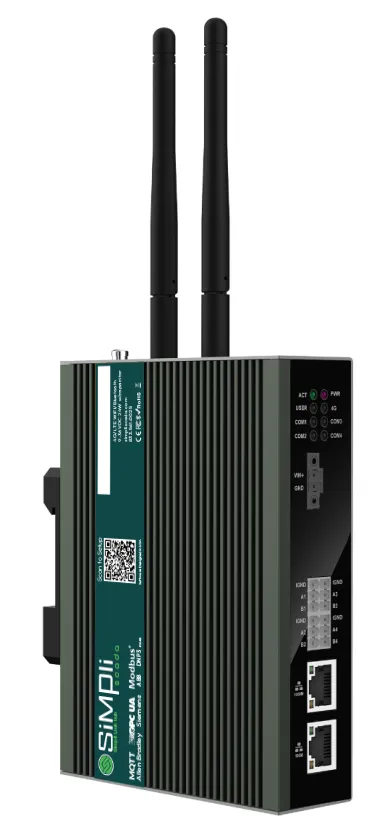

The SimpliLink Hub is an industrial-grade mini computer designed for small facilities. It is capable of handling up to 20 PLCs and 5000 tags.
The SimpliLink Hub an industrial-grade mini computer designed to seamlessly connect your entire operation to the SimpliScada system. Acting as the central bridge between PLCs, tags, and industrial devices, SimpliLink Hub ensures real-time data communication, secure remote access, and uninterrupted performance—without the need for third-party software.
SimpliLink Hub is built for industrial applications. It is easily installed with DIN rail mounting and operates effortlessly in extreme temperatures while maintaining a secure and stable connection to your SCADA network.
Key Industrial PLC-to-Cloud Gateway Features:
✔️ Direct-to-PLC Communication – No middleware or extra software required
✔️ Multiple Connection Options – 4G/LTE, VPN, WiFi, Bluetooth, and Hotspot for maximum flexibility
✔️ DIN Rail Mounting – Easy installation in industrial control panels
✔️ Dual Ethernet Ports – Reliable, high-speed data transfer
✔️ Ambient Humidity
✔️ Super Capacitor – Protects against reversed polarity, voltage spikes and brownouts with a 20-second backup
✔️ Wide Voltage Supply (9~36VDC) – Compatible with various industrial power systems. Max 25W consumption
✔️ Certified for Safety & Compliance – RoHS3, FCC, FCC 47 CFR Part 15 Subpart B, CE, IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3, EN 55032/EN 55035, EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52, EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2
✔️ Wide Operating Temperature - -25ºC to 60ºC
✔️ Hardware Watchdog
✔️ Live cellular and device monitoring
✔️ RSSI tracking for signal strength
✔️ Log Data In Up To One Second Intervals
The SimpliLink Hub+ is an industrial-grade mini computer designed for large facilities. It is capable of handling up to 900 PLCs and 15,000 tags.
SimpliLink Hub+ seamlessly connects your entire operation to the SimpliScada system. Acting as the central bridge between PLCs, tags, and industrial devices, SimpliLink Hub+ ensures real-time data communication, secure remote access, and uninterrupted performance—without the need for third-party software.
SimpliLink Hub+ is built for industrial applications. It is easily installed with DIN rail mounting and operates effortlessly in extreme temperatures while maintaining a secure and stable connection to your SCADA network.
Key Features:
✔️ Direct-to-PLC Communication – No middleware or extra software required
✔️ Multiple Connection Options – 4G/LTE, VPN, WiFi, Bluetooth, and Hotspot for maximum flexibility
✔️ DIN Rail Mounting – Easy installation in industrial control panels
✔️ Dual Ethernet Ports – Reliable, high-speed data transfer
✔️ Ambient Humidity
✔️ Super Capacitor – Protects against reversed polarity, voltage spikes and brownouts with a 20-second backup
✔️ Wide Voltage Supply (9~36VDC) – Compatible with various industrial power systems. Max 25W consumption
✔️ Certified for Safety & Compliance – RoHS3, FCC, FCC 47 CFR Part 15 Subpart B, CE, IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3, EN 55032/EN 55035, EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52, EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2
✔️ Wide Operating Temperature - -25ºC to 60ºC
✔️ Hardware Watchdog
✔️ Live cellular and device monitoring
✔️ RSSI tracking for signal strength
✔️ Log Data In Up To One Second Intervals

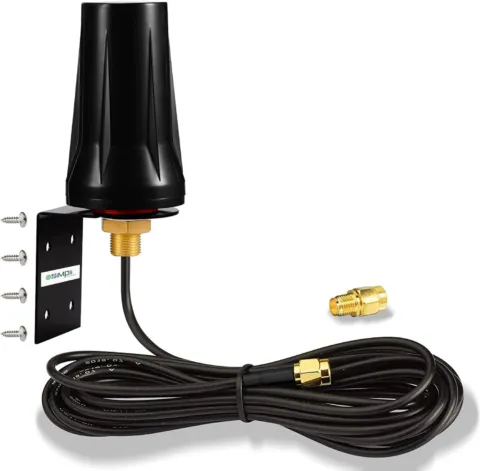

The SimpliScada 4G LTE Antenna is designed to ensure strong, stable, and uninterrupted communication for the SimpliHub and SimpliScada system. This industrial-grade, high-gain antenna provides seamless connectivity to PLCs, tags, and industrial devices, allowing for real-time data transmission and secure remote access.
Industrial 4G LTE Antenna Features:
✔️ Wide Frequency Range – Supports 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz for optimal carrier compatibility
✔️ High-Gain (5dBi) Omni-Directional Reception – Ensures a reliable signal in all directions
✔️ Multiple Connection Options – Compatible with 4G LTE, cellular gateways, and industrial IoT devices
✔️ Weatherproof Design – Built to withstand harsh industrial conditions and outdoor environments
✔️ Flexible Mounting Options – Fixed wall mount and thru-hole mount for secure installation
✔️ Standard 10-Foot Cable (or custom length) – Provides extended reach for optimal placement
✔️ SMA Male Connector with RP-SMA Adapter – Ensures broad compatibility with industrial networking equipment
